Powder And Granule Angle Of Repose Tester Antibiotic Raw Materials Taper 60º ISO 4324

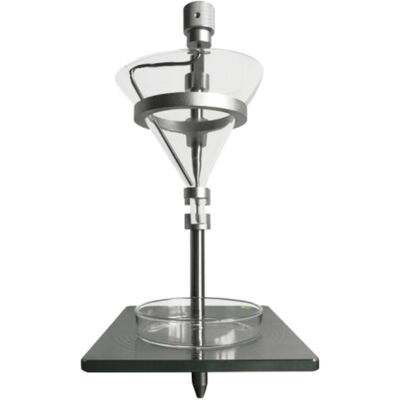

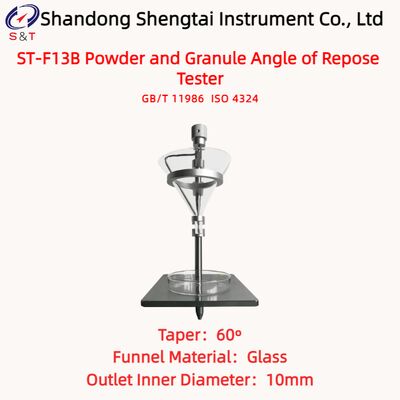

ST-F13B Powder and Granule Angle of Repose Tester

The ST-F13B Powder and Granule Angle of Repose Tester is designed and manufactured in accordance with the provisions of the national standardGB/T11986-89 "Method for Determination of Angle of Repose of Surfactant Powders and Granules".

Scope of Application

This product is intended for laboratories of production, opon, and user units to determine the angle of repose of surfactant powders and granules.

Applicable Standard Requirements

GB/T11986-98for Determination of Angle of Repose of Surfactant Powders and Granules". ISO 4324

Technical Parameters of the Tester

1.Lighting: Meets the lighting requirements for microscope operation.

2.The laboratory is in a natural state regarding airflow and vibration, installed in a stable fume hood with thn turned off. Additionally, the laboratory is free from dust, corrosive substances, and volatile materials.

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, there are may be slight changes without prior notice.

General performance

1. Complies with GB-T11986-98 Technical Specification for Measuring the Angle of Rest of Surfactant Powder and Particles.

2. The product meets the requirements of easy use and maintenance, safety and reliability, economic rationality, and practical beauty.

3. Installation, debugging, and usage methods of the instrument

4. Confirm that the experimental platform for placing this instrument is in a horizontal state,

5. Install the instrument according to the assembly diagram and technical specifications in GB-T11986-98 Surface active agent powder and particle angle of repose measurement.

Installation of instruments

1. The guide rod of this instrument bracket is divided into four adjustable sliding sleeves, starting from the top, which are the movable sliding sleeve of the mixing device, the fixed sleeve at the 60 degree taper of the glass funnel, the movable sliding sleeve at the 10mm discharge port, and the movable sliding sleeve of the ruler

2. Release and remove the movable sliding sleeve of the mixing device, fix the glass funnel through the 60 degree taper and the lower discharge port through the 10mm fixed sleeve of the discharge port, and visually adjust it to be perpendicular to the base.

3. Place a container with an inner diameter of 100mm and a height of 25mm at the center point with reference to the bottom plate scale

4. Adjust the height value between the discharge port under the glass funnel and the bottom plate by 100mm.

5. Adjust the appropriate height visually above the fixed mixing device and glass funnel, and fix it.

6. Complete the test according to the standard requirements

Packing List

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
