Single Hole Automatic Condensation Point Pour Point Tester Cold Bath -70℃ ～ RT ASTM D97

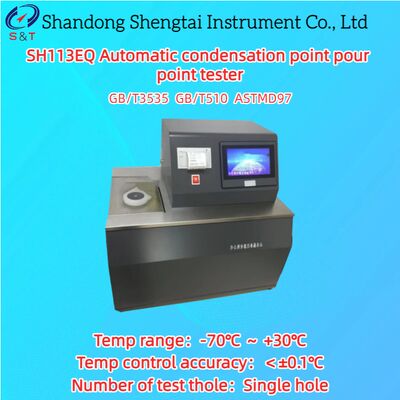

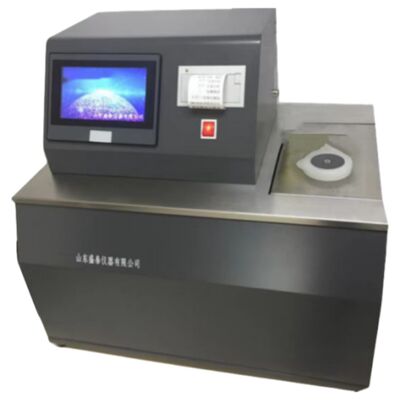

SH113EQ Automatic condensation point pour point tester

SH113EQ automatic condensation point pour point tester is designed and manufactured according to the standard of the People's Republic of China GB/T3535 "Petroleum Pour Point Determination Method" and the standard of the People's Republic of China GB/T510 "Petroleum Pour Point Determination Method". It adopts the main control components composed of multiple single chip microcomputer, automatic refrigeration, automatic constant temperature, automatic detection, and automatic printing output results.

Adopt the two-stage refrigeration system, make the refrigeration range +30℃ ~ -70℃, adapt to pour point/condensation point higher than -35℃ sample detection, because of the use of Germany Danfoss imported compressor to work for a long time stable and reliable, not easy to damage.Adopt dry trap cold bath box, less lag, fast cooling, do not need other cooling medium, easy to use and maintenance.Adopt high performance infrared detection technology, high detection sensitivity, strong reliability.

The condensation point is the highest temperature of an oil product under specified test conditions, expressed in ℃, when the test oil is placed in a test tube and cooled to the liquid level without moving.

Pour point refers to the minimum temperature at which a cooled sample of oil can flow under specified test conditions; Expressed in ℃

Instrument features:

● After upgrading, historical data can be stored for easy query; It can also be equipped with a USB flash drive output function.

● Standard micro printer for automatic measurement and printing

● If no personnel operate after the test is completed, set the automatic shutdown time of the refrigeration machine within 0-50min to avoid frequent opening of the compressor, and extend the service life of the instrument

● Standard micro printer for automatic measurement and thermal printing

● Data memory: The memory of microcomputer instruments can be expanded to 16GB.

● Remote upgrade: With TCP network transmission function, software remote upgrade can be performed later (optional)

● Data management: can be connected to the LIMIS system (optional)

Technical parameters:

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list of automatic freezing point and pour point meter

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
