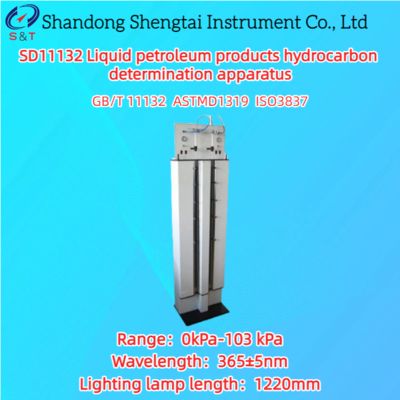

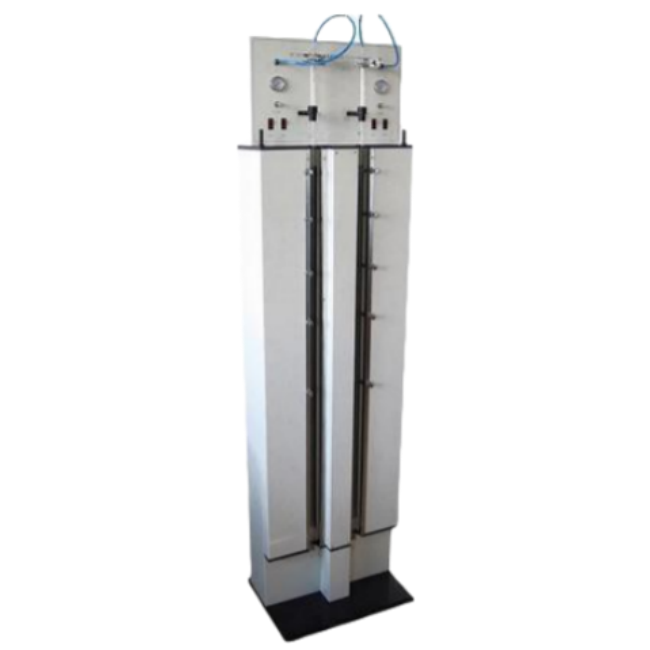

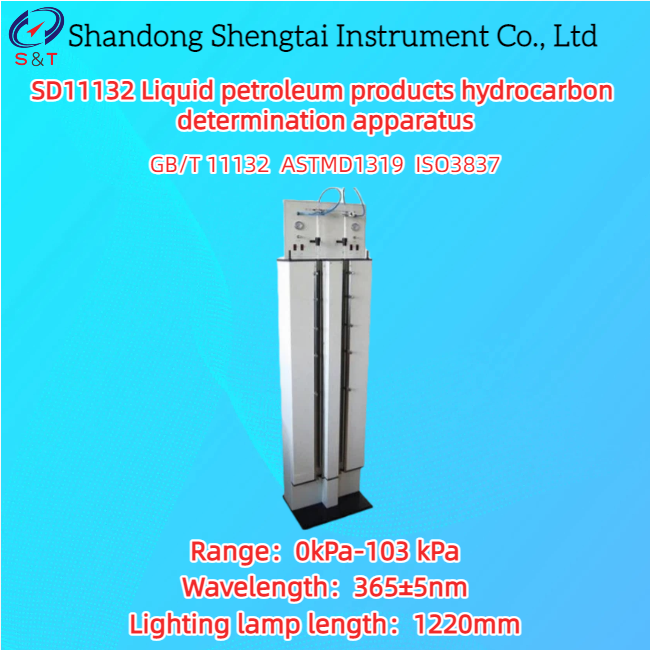

ASTM D1319 Liquid Petroleum Products Hydrocarbon Determination Apparatus SD11132

SD11132 Liquid petroleum products hydrocarbon determination apparatus

SD11132 Liquid petroleum products hydrocarbon meter is in accordance with the law of the People's Republic of China standard GB/T 11132-2002 "hydrocarbon liquid petroleum products determination method (fluorescent indicator adsorption method)" the requirements stipulated in the design and manufacture, apply to approach, as stipulated in the standard GB/T 11132 main hydrocarbon in liquid petroleum products with fluorescent indicator displayed on the silica gel adsorption column, calculate the volume percentage, as the quality of the fuel oil such as engine fuel, aviation fuel measuring indicators.

This instrument is a special instrument for the determination of the volume fraction of aromatics, olefin and saturated hydrocarbons in petroleum fractions.

Standard: GB/T 11132 ASTM D1319 ISO 3837

Main technical features

● The instrument adopts a precision adsorption column imported from the United States, imported fluorescent indicators and silicone gel to ensure data reliability. The integrated vertical structure design does not require installation and can be directly placed in a suitable indoor location for use.

● The instrument is composed of gas circuit system, vibration part, scale and scale indicator, system lighting, ultraviolet detection and other components, from the silicone filling, vibration, sampling until the reading test results at one go.

● Direct use of two imported precision inner diameter glass tube adsorption column (standard wall glass tube adsorption column is no longer matched), more convenient for users to use.

● Equipped with a UV resistant design and a built-in fixed oscillator, it can automatically clean and ensure the safe use of the glass adsorption column

Main technical parameters and indicators

Note: The appearance pictures, dimension, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Standard accessories

Notice: Optional accessories: 1 air compressor
