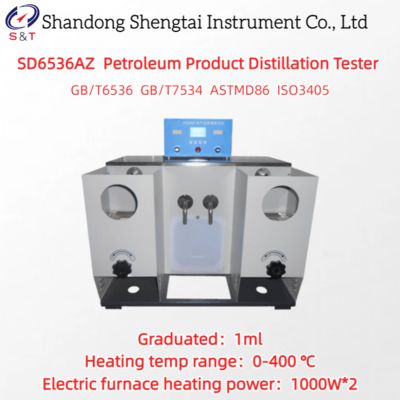

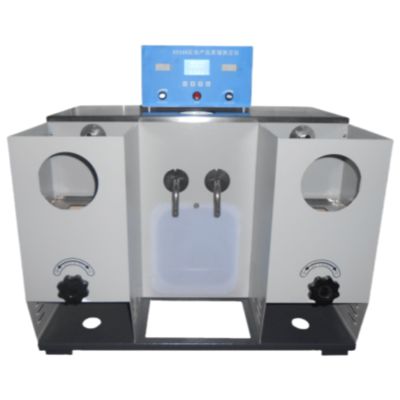

2 Holes Fractional Fuel Distillation Tester Cold Bath 5.5L Heating 0-400℃ ASTM D86

SD6536AZ Petroleum Product Distillation Tester Double Hole Refrigeration

Purpose and scope of application

The SD6536AZ petroleum product distillation boiling range tester (dual well) is designed and manufactured in accordance with the requirements of the Chinese standards GB/T6536 "Petroleum Product Distillation Determination Method" and GB/T7534-2004 "Industrial Volatile Organic Liquids Boiling Range Determination". It is suitable for use in accordance with GB/T6536 and GB/T7534 standards

Standard: GB/T 6536 GB/T 7534 ASTM D86 ISO 3405

Distillation range refers to the temperature range from the initial boiling point to the final boiling point, which represents the evaporation characteristics of an oil product distilled under specified conditions.

Boiling range: The temperature at which the first drop of liquid begins to drip from the condenser during distillation is the initial distillation temperature; The temperature near the end of distillation is the final distillation temperature, and the range between the two temperatures is the boiling range.

Suitable for distillation determination of gasoline, aviation gasoline, gasoline injection fuels, solvents with special boiling points, naphtha, diesel, distillate fuels, and similar petroleum products, as well as boiling range of chemical products.

Main technical parameters and technical characteristics

● A constant temperature bath is composed of a digital temperature controller, stainless steel heater, and a new refrigeration compressor, with uniform temperature inside the bath, fully meeting the requirements of the experiment.

● Adopting a special heating furnace form to ensure the safety of the test; The heating power is continuously adjustable, meeting the requirements of the experiment.

● This instrument is fully equipped and easy to use, and can be used for distillation range boiling range testing of petroleum products under low temperature conditions upon purchase.

● The condensate water tank is made of stainless steel and can be heated and cooled

● Refrigeration internal circulation, no need for cooling water external circulation.

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
