Manual Operation Lovibond Colorimeter Colorimetry Of Edible Oil GB/T 22460-2008

Herkunftsort CHINA
Markenname Shandong Shengtai Instrument Co., Ltd.
Zertifizierung GB/T 22460-2008
Modellnummer ST110
Min Bestellmenge 1
Verpackung Informationen Holzkiste
Lieferzeit 7-15 Arbeitstage
Zahlungsbedingungen T/t
Versorgungsmaterial-Fähigkeit 10000 Sets/Jahr

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Rot 0.1~79.9 Lovibond-Einheit Gelb 0.1~79.9 Lovibond-Einheit
Blau 0.1~49.9 Lovibond-Einheit Vergrößerungskraft 1.9x
Stromverbrauch 120W Stromversorgung AC220V ± 22 V 50 Hz ± 1 Hz
Hervorheben

Lovibond colorimeter edible oil

,

manual colorimeter food testing

,

edible oil colorimetry GB/T 22460

Hinterlass eine Nachricht
Produkt-Beschreibung

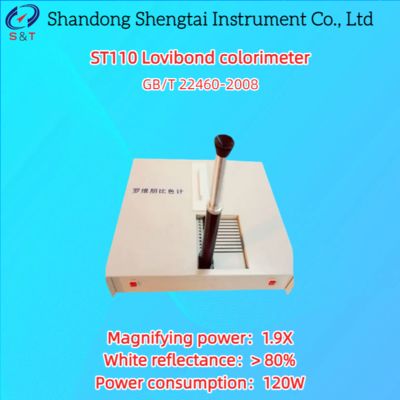

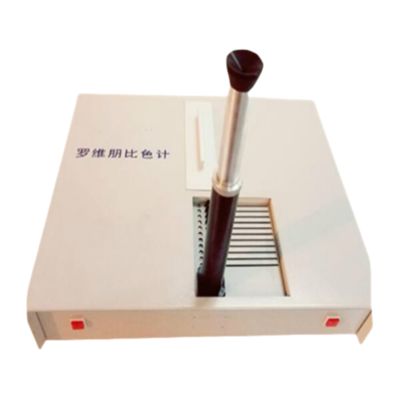

ST110 Lovibond colorimeter

ST110 Lovibond colorimeter is a visual colorimeter, it using the international general Lovibond color degrees as the standard, can measure various liquids, colloids, solid and powder of chroma samples. Instrument has the advantages of simple structure, firm, the operation is very convenient, very suitable for cooking oil and other industrial and agricultural products, color measurement, in order to achieve the daily quality control.

Working principle

The instrument itself comes with a set of standard color filters ranging from light to dark colors, divided into three color series: red, yellow, and blue. The working principle of the instrument is based on the principle of color subtraction, mixing, and matching. The optical system of the Lovibond colorimeter tube refracts light into a 90 ° angle and divides the observation field into two parts that can be observed simultaneously, one of which is the field of view for observing the sample color; The other part is to observe the field of view of the reference color (standard color filter with Lovibond chromaticity unit). Choosing the appropriate combination of color filters to achieve the best match with the color of the tested sample, the displayed value of the Lovibond color filter on the instrument is the measurement result of the tested sample.

Main technical parameter:

Measuring range

Red: 0.1~79.9 Lovibond unit

Yellow: 0.1~79.9 Lovibond unit

Blue: 0.1~49.9 Lovibond unit

Neutral gray: 0.1~3.9 Lovibond unit

Minimum division value of the instrument 0.1 Loviborn units
White reflectance > 80%
Magnifying power 1.9X
Colorimetric dish size

10×20×40 mm

25.4×20×40 mm

133.4×20×40 mm

Power supply AC220V ± 22V 50Hz ± 1Hz
Power consumption 120W
Color comparison box dimensions 455 * 334 * 120mm
Attachment box dimensions 360 * 270 * 100mm

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Manual Operation Lovibond Colorimeter Colorimetry Of Edible Oil GB/T 22460-2008 0

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Unit
2 Colorimeter accessories 1 Set
3 Power cord 1 Strip
4 Fuse tube 1 Piece 10A in the safety seat
5 Instruction manual 1 Copy
6 Certificate warranty card 1 Copy
