Activated Carbon Penetration Sulfur Capacity Tester range 0-10% temp 500-1150℃ GB/T7702.14

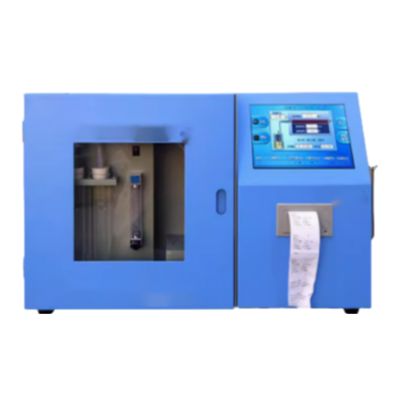

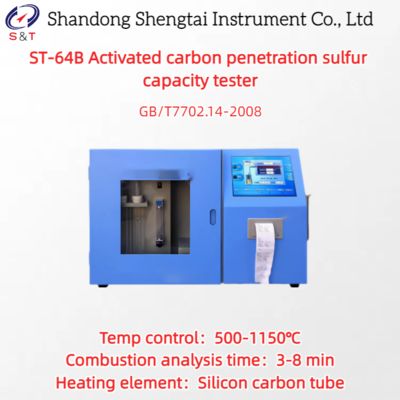

ST-64B Activated carbon penetration sulfur capacity tester

ST-64B activated carbon penetration capacity testing device is developed in accordance with the national standard GB/T7702.14-2008 "Test methods for coal based granular activated carbon - Determination of sulfur capacity". It is suitable for testing the penetration capacity of coal based granular activated carbon, as well as for testing the penetration capacity of other types of activated carbon.

Experimental principle:

The test sample is burned in a purified air flow at a high temperature of 1050 ℃, and various forms of sulfur in the coal are decomposed and carried to the electrolysis cell by the air flow to combine with water to generate H2SO3. Due to its disruption of the dynamic equilibrium of the original iodine iodine ion pairs in the electrolysis cell, the instrument immediately outputs a current to electrolyze potassium iodide solution to generate iodine, in order to restore the original dynamic equilibrium, which is the Coulomb titration in GB/T214-1996. The amount of current consumed to restore the original dynamic equilibrium is related to the sulfur decomposed during combustion in the laboratory sample, which can be measured and calculated by a microprocessor

Technical parameters

● Measurement range of total sulfur: 0-10%

● The sample combustion analysis time is 3-8min, and the titration endpoint is automatically determined and returned.

● Temperature control: 500-1150℃

● Controllable: ± 3 ℃.

● Temp measurement: accuracy level 0.5

● Heating element: silicon carbon tube

● High-temp zone length: ≥ 90 mm

● Experimental temp: 1050 ℃± 5 ℃ (the temp can be adjusted as needed).

● Heating rate:25-30 ℃/min, up to 1050 ℃ in about 30min.

● Electrolytic cell volume: 450ml, platinum metal electrode.

● Instrument stability: Stable state within 1 minute after startup

● Rated power supply:220V±10% 50HZ

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
