Activated Carbon Saturation Sulfur Capacity Tester 5mm carbon layer GB/T7702.14

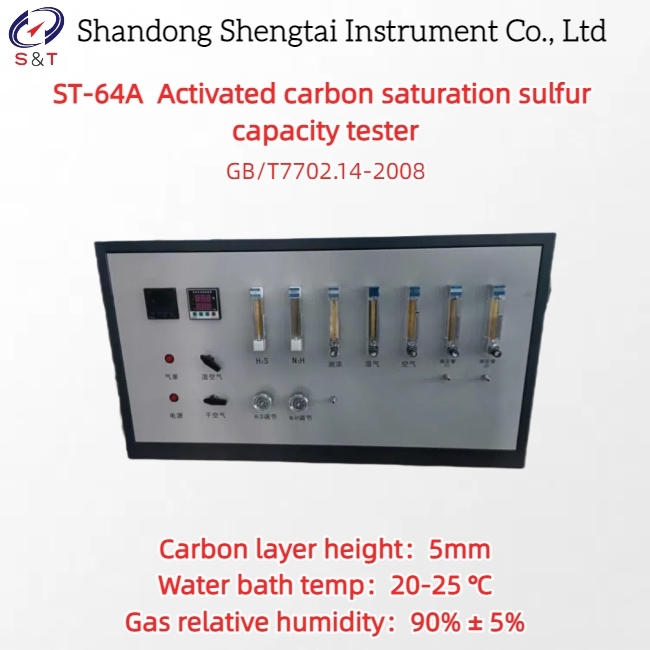

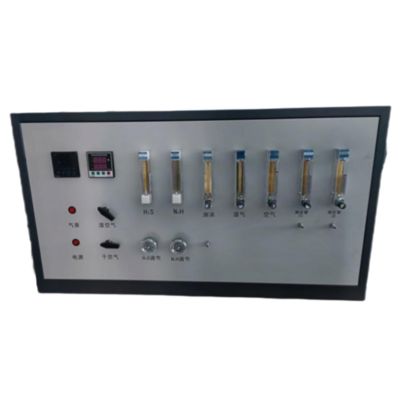

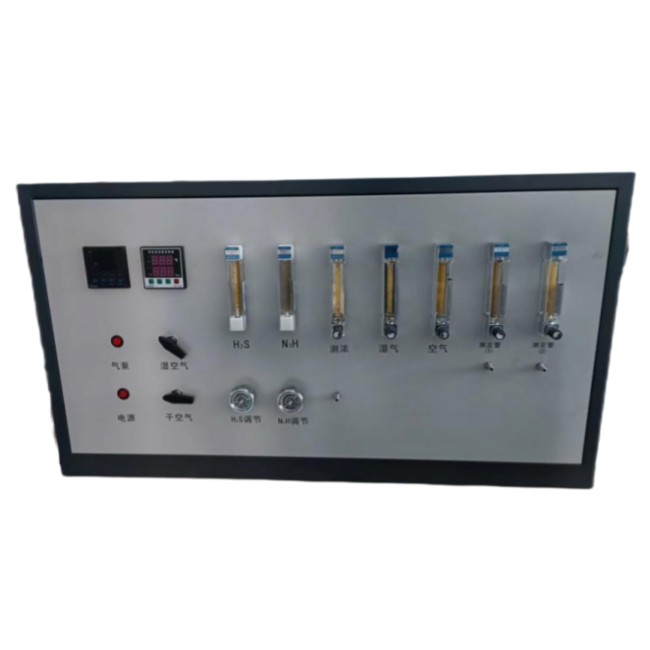

ST-64A Activated carbon saturation sulfur capacity tester

ST-64A activated carbon saturation sulfur capacity testing device is developed in accordance with the national standard GB/T7702.14-2008 "Test methods for coal based granular activated carbon - Determination of sulfur capacity". It is suitable for testing the saturated sulfur capacity of coal based granular activated carbon, as well as for testing the saturated sulfur capacity of other types of activated carbon.

Experimental principle

Under specified experimental conditions, it is beneficial for the porosity of activated carbon to adsorb hydrogen sulfide gas. In the presence of oxygen and ammonia, a catalytic reduction reaction occurs, and the precipitated elemental sulfur adheres to the activated carbon until it is fully adsorbed. The mass of saturated sulfur adsorbed on the sample is calculated, and the sulfur capacity of the activated carbon is expressed in milligrams of increments per gram of saturated adsorption of dry activated carbon sample.

Technical parameters:

● Adsorption

Gas concentration: Mass concentration of hydrogen sulfide 5mg/L ± 0.5 mg/L

Oxygen volume fraction 0.6%~1.0%

The mass concentration of ammonia is 0.2 mg/L~0.3 mg/L

The carrier gas during adsorption is nitrogen gas.

lWater bath temperature:20-25 ℃

lRefrigeration method:compressor refrigeration

lGas relative humidity:90% ± 5%

lGas specific speed:0.25L/(min. cm²)

lCarbon layer height:5mm

The self provided reagents, gases, and consumable glass equipment are as follows:

1.40L ordinary nitrogen cylinder gas; PURITY 98%; 5 bottles

2.4-8L hydrogen sulfide cylinder gas; Concentration 10%; 2 bottles

3.4-8L ammonia cylinder gas; Concentration 5%; 2 bottles

4. Chemical reagents

4.1. Iodine standard titration solution 0.02mol/L

4.2. Sodium thiosulfate standard titration solution 0.02moI/L

4.3. Sulfuric acid standard solution 0.02mol/L

4.4 Sodium hydroxide standard titration solution 0.02moI/L

4.5. Mass fraction of zinc acetate solution 2%

4.6. Methyl orange indicator mass fraction 1%

4.7. Starch indicator 0.5%

4.8. Ammonia; GB/T631; Analytical pure; 1 box

4.9. Sodium sulfide; GB/T10500; Analytical pure; 5 bottles

4.10. Acetic acid (Glacial acid); GB/T676; Analytical pure; 1 box

4.11. Sulfuric acid; 50%; Analytical pure; 5 bottles

Vulnerable glass parts:

1. Measurement tube

2. Mixer

3. Absorption bottle

4. Tee pipe

5. Two way piston

Note: The appearance picture and size, volume and weight of the instrument are for reference only. If the instrument is updated, it may be slightly changed without further notice.

Instrument Quality Guarantee

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The instrument materials provided shall be brand new, conforming to the quality standard and goods with manufacturer's certificate of conformity;

----The materials and main components provided comply with the technical requirements specified in the technical data;

----The warranty period of the whole equipment is one year (excluding normal wear of wearing parts).

----In case of any instrument quality problem within the warranty period, we shall be responsible for free maintenance. If the equipment fails due to the user's responsibility, we shall be responsible for the repair and reasonable charge.

----The equipment lifetime preferential supply spare parts, complete machine lifetime maintenance repair.

----After expiration of the warranty period, if the user needs maintenance and technical services, we will only charge the cost.

Packing delivery

1. Package of goods: standard wooden cases or cartons.

2 Internal packaging: flexible pearl cotton packaging products, hard wood plate+strong band fixed corner.
