Brinell Rotational Viscometer for Lubricating Oil -70℃ to Room Temp ASTM D2983

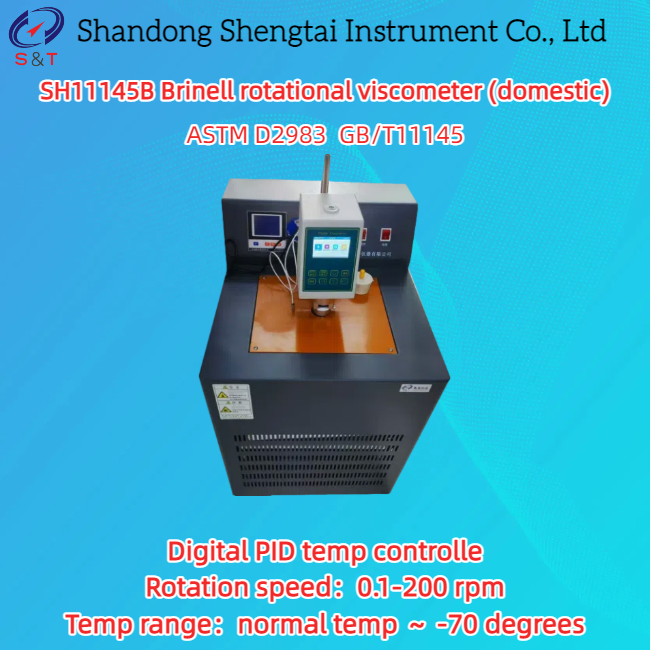

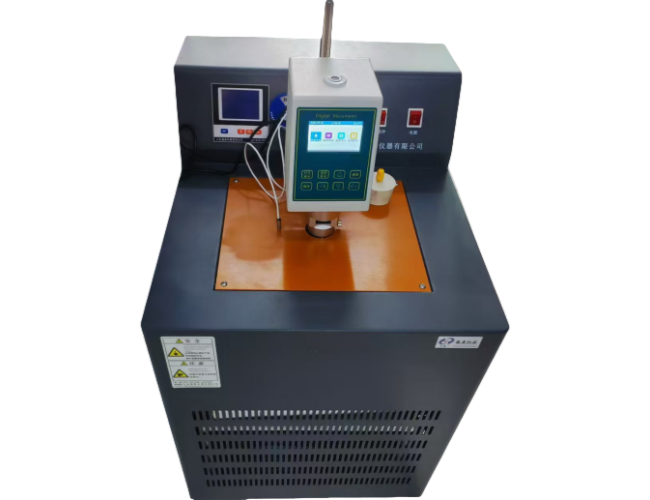

SH11145B Brinell rotational viscometer (domestic)

The SH11145B Low Temperature Brinell Viscometer for Lubricating Oil is designed and manufactured strictly in accordance with GB/T11145-2014 Determination of Low Temperature Viscosity of Lubricants using the Brockfeldt Viscometer Method. It is suitable for detecting automotive fluid lubricants with a viscosity range of 1 to 6000000mPa.s, such as gear oil, hydraulic transmission oil, industrial and automotive hydraulic oil.

The method for determining the shear rate viscosity of automotive fluid lubricants involves placing the sample in a cold bath at the test temperature, connecting a Burgundy viscometer and a spindle, selecting the appropriate rotational speed, and maintaining a constant temperature for 2 to 16 hours before measuring the low-temperature Burgundy viscosity of the sample.

• Standard: ASTM D2983 GB/T11145
• Range of temperature: Ordinary temp ～ -70℃
• Temp control method: Digital PID temp controlle
• Rotation speed: 0.1-200 r/min
• Rotor configuration: 1-4 rotors (standard) 0 rotors (optional)
• Viscosity range: 1-6 million Mpa.s (cp) 15mpa.s below, it is recommended to use rotor 0 #
• Viscosity temp curve: Touch screen display
• Measurement error: ± 1% (FS) Newtonian fluid
• Repeatability: ± 0.2% (FS) Newtonian fluid
• Screen display: Viscosity, shear rate, shear stress, rotational speed, temperature, percentage torque, rotor number, and the maximum measurable viscosity value of the selected rotor at the current rotational speed
• Timing function: Touch screen displays timing function
• Data interface: equipped with RS232 printing interface, can directly connect to computer printing interface
• Printing function: Connect to a micro printer to print experimental data
• Cooling method: Compressor cooling

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

• The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity
• The materials and main components provided meet the technical requirements specified in the technical documentation
• The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
• We are responsible for free maintenance of any instrument quality issues that occur during the warranty period
• Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees
• Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
• After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee
