Fully Automatic Vacuum Distillation Tester ASTM D1160 ±0.1℃ Accuracy

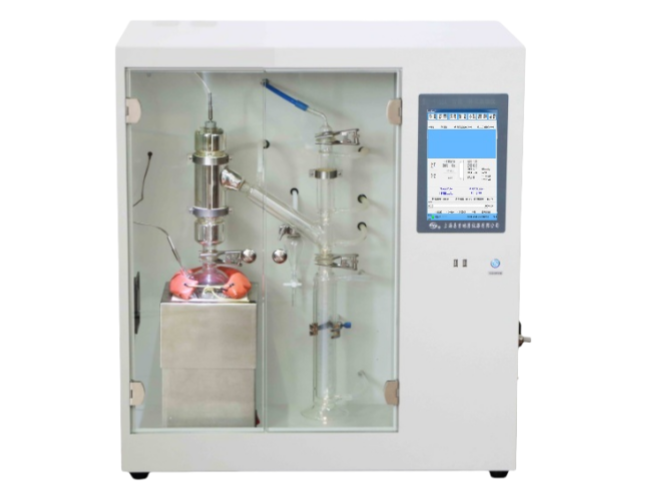

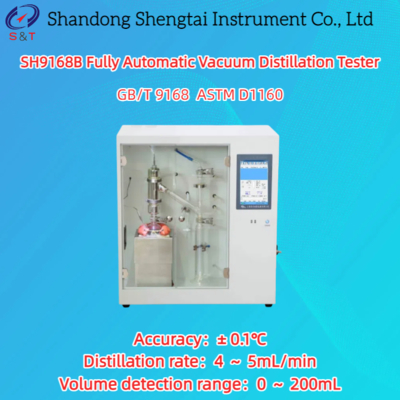

SH9168B Fully Automatic Vacuum Distillation Tester

The SH9168B automatic vacuum distillation analyzer is a specialized testing instrument designed and manufactured in accordance with the Chinese standards GB/T 9168 and ASTM D1160.

This instrument measures the boiling point range of petroleum products that can be partially or completely evaporated. It is a fully automatic vacuum distillation analyzer with heating and cooling devices, equipped with an imported liquid level sensor to automatically track the liquid level.

• Fully automated temperature control, liquid level tracking, temperature recording, and printing functions
• Built-in micro thermal printer for automatic result reporting
• Standard-compliant testing process with reliable data and excellent repeatability
• Imported infrared liquid level detection unaffected by ambient light
• Accurate volume measurement

• Display mode: Embedded industrial grade color touch screen
• Refrigeration method: German imported compressor refrigeration
• Temp range: -40 ℃ ～ room temp or room temp ～ 500 ℃ accuracy ± 0.1℃
• Heating method: Electric heating unit, maximum heating power of 800 W
• Temperature sensor: Pt100 glass probe imported from Germany
• Cooling method: Compressor cooling
• Distillation rate: 4 ～ 5mL/min
• Volume detection range: 0 ～ 200mL
• Working power supply: AC220V 50Hz
• Packaging size: 780 * 550 * 650mm
• Weight: 65kg

• Brand new instruments meeting quality standards with manufacturer's certificate
• Materials and components meet specified technical requirements
• One-year overall quality assurance (excluding normal wear and tear)
• Free maintenance for quality issues during warranty period
• Lifetime discounted parts supply and maintenance services
• Post-warranty maintenance available at cost

• Standard wooden or cardboard box packaging
• Internal packaging: Elastic pearl cotton with hardwood board and strong bandage corner protection
