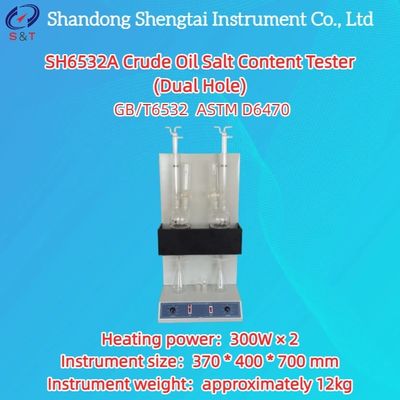

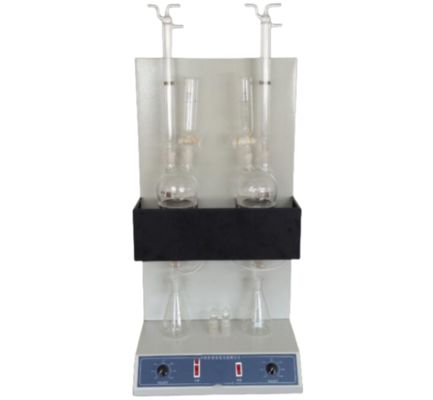

SH6532A Dual Hole Crude Oil Salt Content Analyzer ASTM D6470

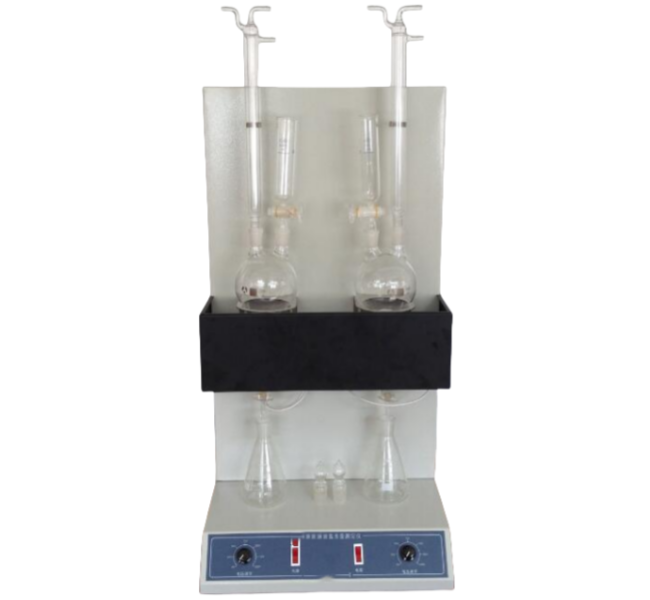

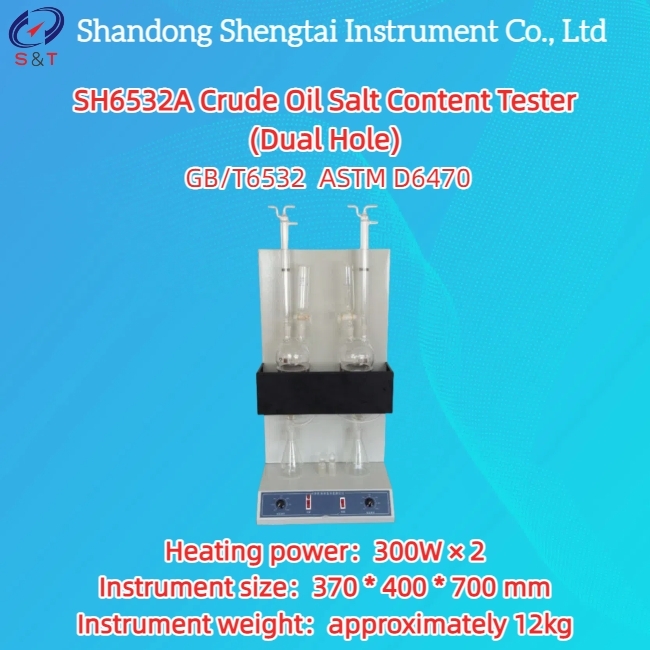

SH6532A Crude Oil Salt Content Tester (Dual Hole)

The SH6532A crude oil salt content analyzer (dual hole) is designed and manufactured in accordance with the requirements specified in the Chinese standard GB/T6532 "Determination of Salt Content in Crude Oil and Its Products".

Crude oil salt content: suitable for determining the total amount of chloride with a concentration of 0.002-0.02% (by weight) in crude oil, topped crude oil, cracked residue oil, and fuel oil. It can also be used to determine the situation where used turbine oil and marine fuel oil are contaminated by seawater. When the required precision is not greater than the range specified in this method, it can also be used for other products.

Standard: GB/T6532 ASTM D6470

• Extraction unit: consisting of a flask and a heating part, with a flask volume of 500ml; the heating part is composed of an electric heating wire wrapped around the lower end
• Column shaped dropper funnel: used to add hot toluene, anhydrous ethanol, CH3COCH3, etc. and perform quantitative separation
• Condenser: It condenses the distilled gas.
• Water regulating valve: The inlet of the water regulating valve is connected to tap water, the outlet is connected to the inlet of the condenser, and the outlet of the condenser is connected to the sewer. Adjust the water inlet of the condenser through this valve.
• Temperature controlled electric furnace: used to heat the test solution that needs to be heated.
• Glass container: with a capacity of 1000ml, used for heating the test solution that needs to be heated.
• Triangle bottle: Grinding mouth triangular bottle, used to receive the solution released from the flask.
• Triangle bottle stopper: The stopper of a triangular bottle.
• 2-core aluminum plug: power plug for the heating wire of the extractor.
• Separating funnel piston: the control piston for the extraction device to discharge the solution.
• Electrical control box: the electrical part of the control instrument
• Attention: Voltage adjustment knob 1 (voltage adjustment knob 2) should be adjusted slowly when adjusting the voltage, so that the voltage rises slowly. It is not allowed to suddenly increase the voltage to prevent damage to the device.

• Extraction unit: in accordance with the specifications and dimensions of glassware specified in GB/T6532 standard
• Heating power of extractor: 300W × 2
• Temperature controlled electric furnace power: 600W
• Working power supply: AC (220V ± 10V) 50Hz
• Instrument size: 370 * 400 * 700 mm
• Instrument weight: approximately 12kg
• Packaging size: 460 × 480 × 820mm
• Packaging weight: 28kg wooden crate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

• The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
• The materials and main components provided meet the technical requirements specified in the technical documentation;
• The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
• We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
• Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
• After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

• Packaging of goods: standard wooden or cardboard boxes.
• Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
